PRODUCT DESCRIPTION

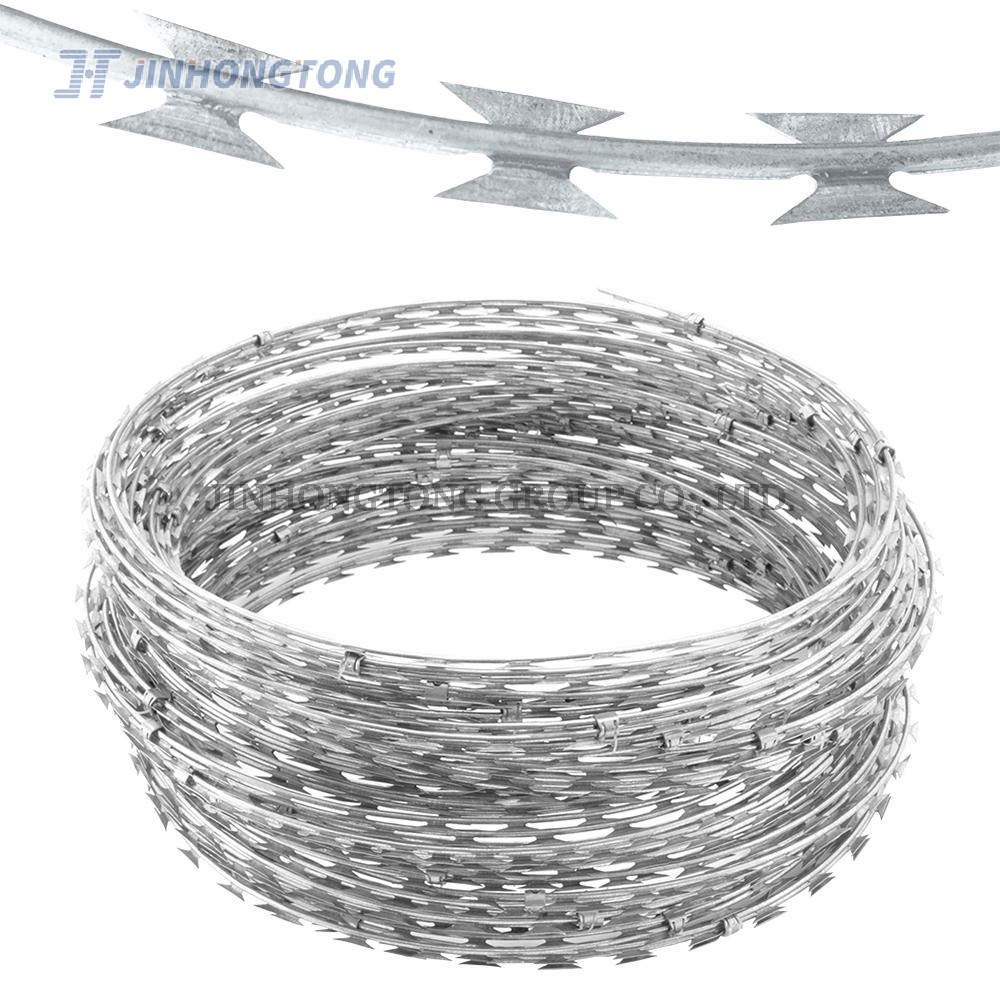

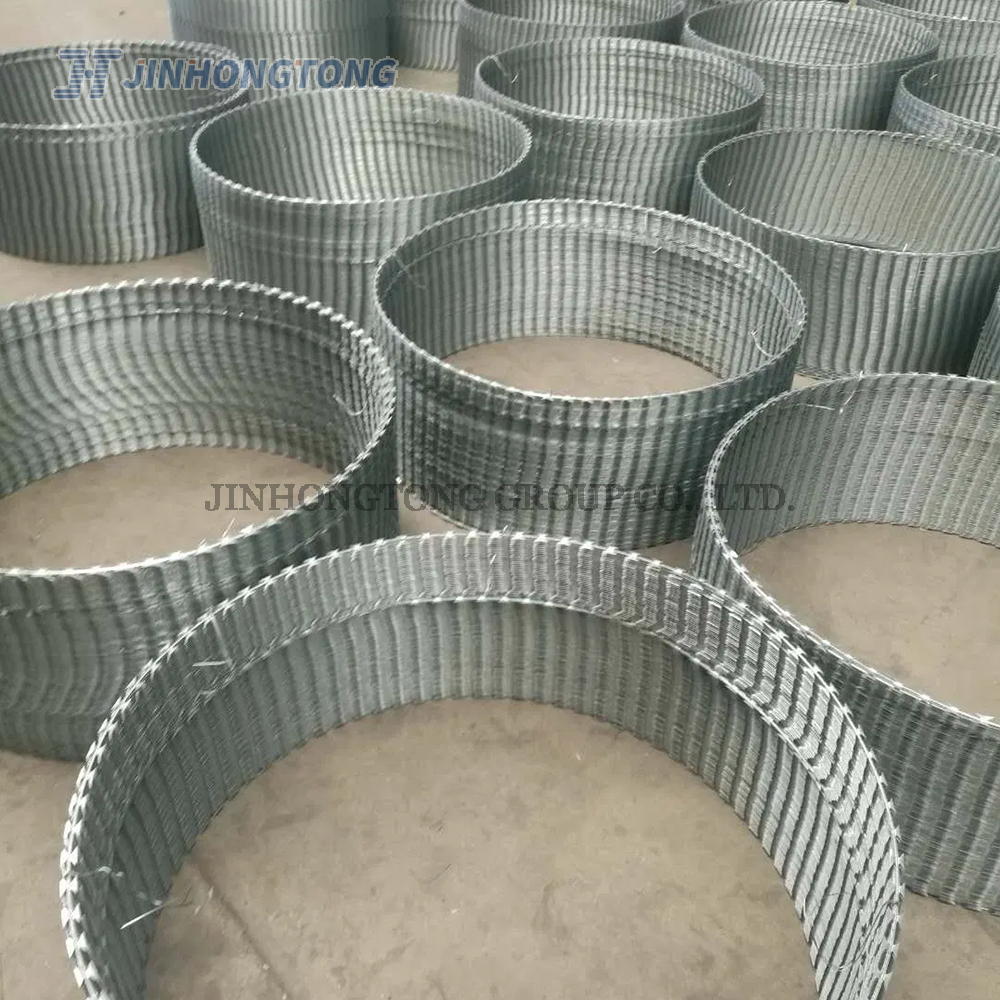

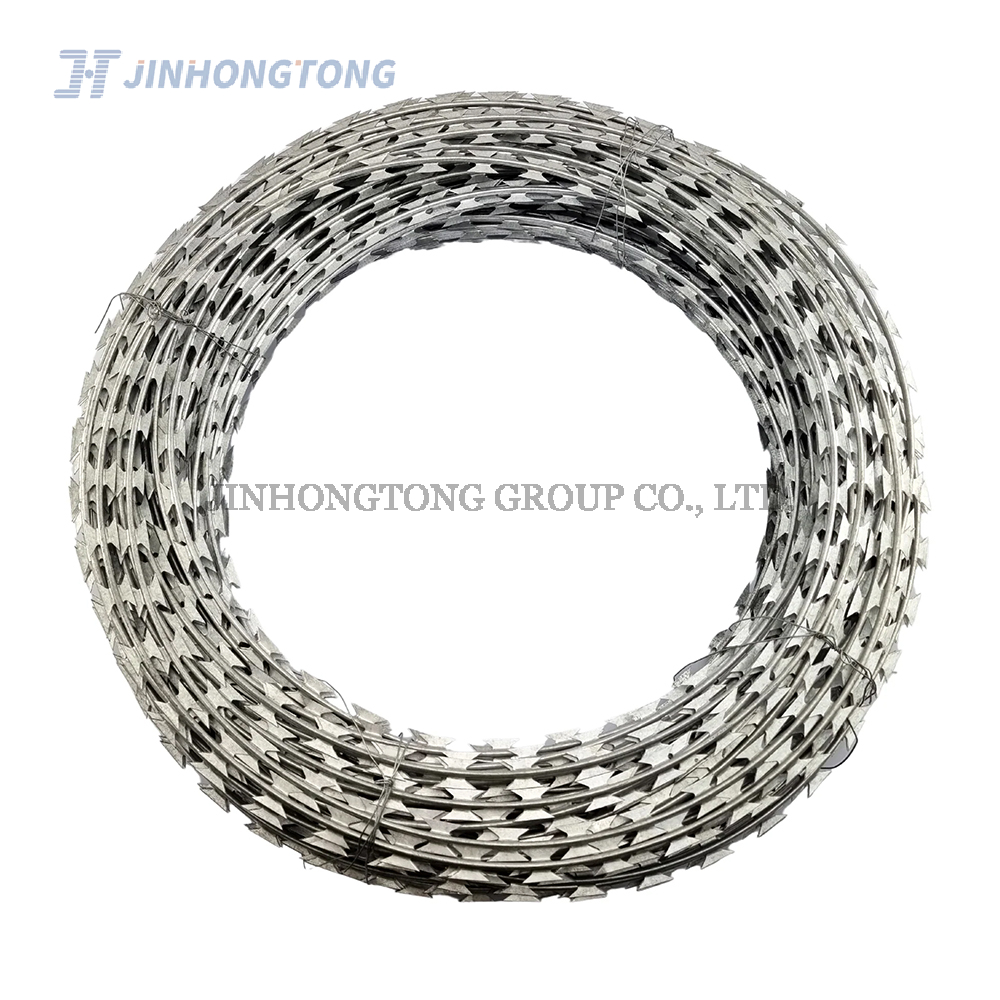

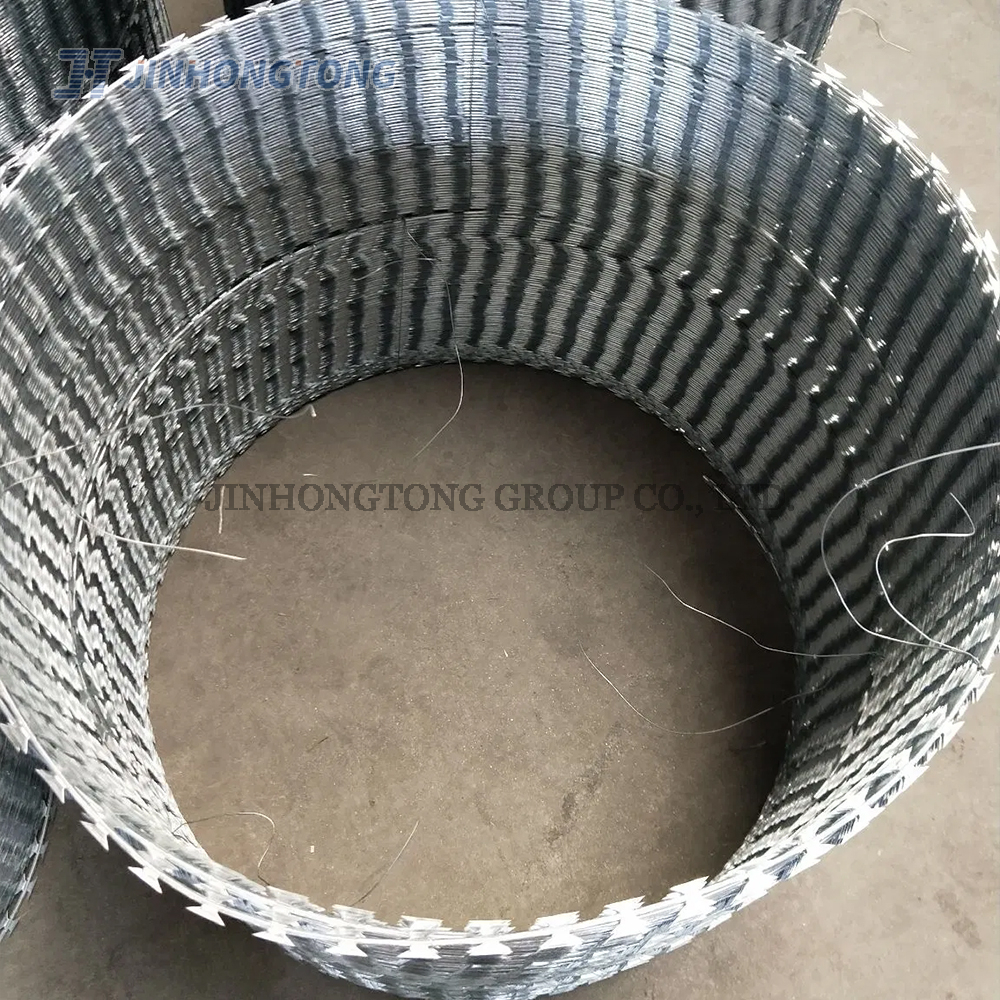

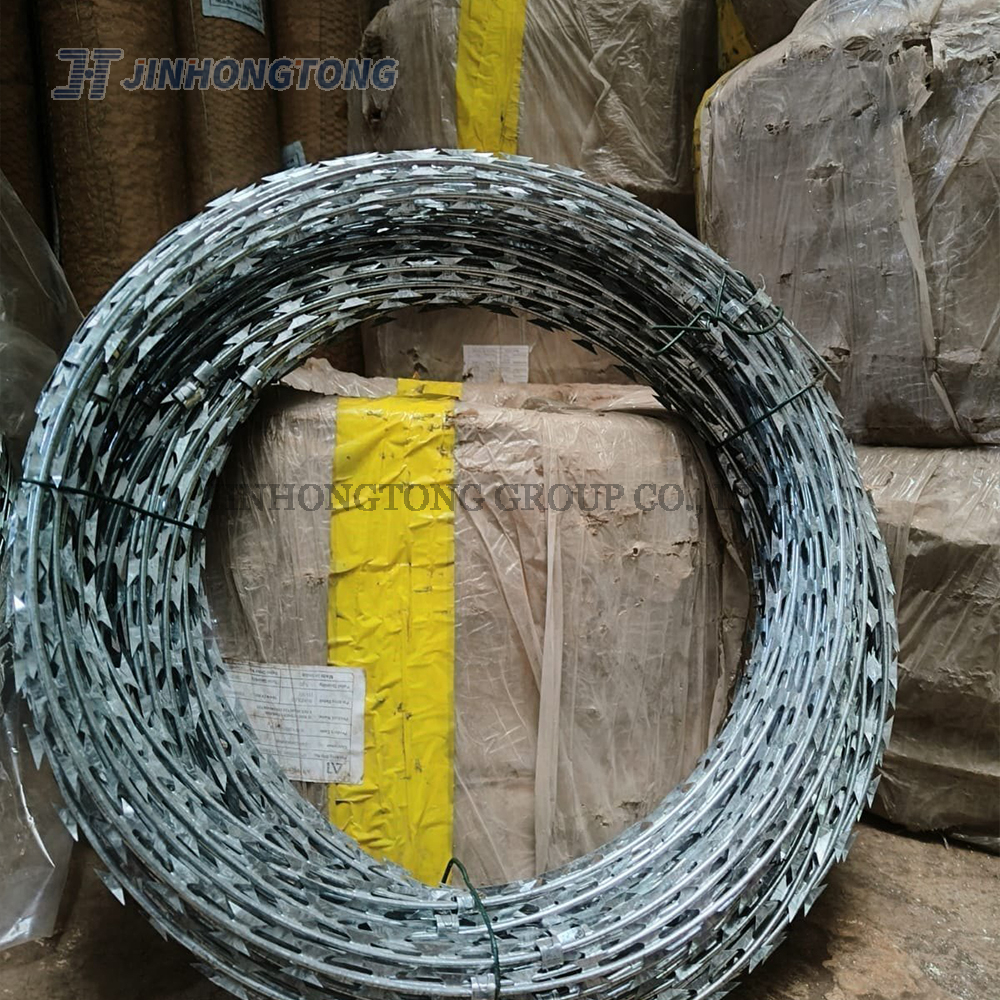

Razor Ribbon offers the ultimate in high perimeter security for indoor and outdoor property protection. (Also know as Razor Ribbon Helical, Security Barbed Tape or Concertina Wire)
Razor ribbon helical is the barbed tape most recommended for private and industrial use. the loops are not clipped together in a concertina fashion, allowing the barbed tape to be installed with a variety of loop spacing options, depending upon the level of security required.
Razor ribbon helical barbed tape from tube, a type of concertina wire, is used to for low / medium level commercail security applications like car lots, storage facilities, and manufacturin
Types - Galvanized & Stainless Steel. The loops are normally not clipped together in concertina fashion. This allows the razor wire coil to be installed in any distance between loops, depending on the security desired, the most common being 18” or 450 mm.
Razor wire ribbon is a kind of galvanized steel wire tape, with two-sided blades with symmetrical arrangement. The galvanized steel wire diameter is of 2.5 millimeters, reinforced to 5 mm in diameter. The most important feature of razor concertina wire is that its construction is able to maintain its structure.
Razor wire ribbon coil is manufactured in 3 diameters - 18” - 24” - 36” (450-600-750 MM). It is fabricated from A 1” (26MM) wide and 0.020 (0.50 MM) thick strip of G 90 galvanized material or 430 stainless steel. Clusters of 4 needle sharp barbs are located 4” (100 MM) on center around each coil loop. Each barb is 1.2 when measured from the center of the cluster. The coil is cold pressed 230o around A 0.091 (2.3 MM) diameter high tensile galvanized or stainless steel core wire. Galvanized steel wire materials can operate in an open air temperature of -50 ~ 50 centigrade, and it can function under the impact of rain, fog, snow, dust and strong wind loads. The design is very easy to assemble and install, allowing the repeated use of it, for example, on construction sites.
Benefits
Perimeter security products
Long barb, wire-reinforced helical barrier formed without clipping
Helical barbed tape and core available in stainless steel or galvanized
Razor Type: BTO-10, BTO-12, BTO-18, BTO-22, BTO-30,CBT-60,CBT-65.
Razor wire types: straight line razor wire, single coil concertina wire, double coil wire, welded razor mesh fence.
It is divided to electrical galvanized ,hot - dipped galvanized, plastic coating, stainless steel, etc.
Surface finished: Electro galvanized, Hot dipped galvanized, PVC coated.
Application: Razor Barbed Wire is widely used in military affairs, prison, government, bank, and also in living wall, personal house, villatic wall, window, autobahn, railway and border of the fence.
CBT-65 Stainless Steel 304 Razor Wire Ribbon Barbed
Product Recommendation
SINGLE TWIST BARBED WIREWire Materials: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
General Use: Barbed wire mainly serves in protecting of grass boundary, railway, highway, etc.
- DOUBLE TWIST, TRADITIONAL TWIST, REVERSE TWIST.Wire Materials: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.Weaving process: twist weaving; galvanized.It is relatively inexpensive, but viciously effective. Concertina razor Wire around the perimeter is enough to deter any wouldbe vandal, robber or saboteur.
- TRADITIONAL TWIST BARBED WIREBarbed wire is the most popular fencing wire made in three processing methods: traditional twisted, positive / straight twisted, reverse / negative twisted. Strands can be single or double. The wires are braided with a system of constant torsion, with barb prongs interlaced in the wires. As a traditional fencing product for protection and privacy, barbed wire is widely used in civil and military life.
