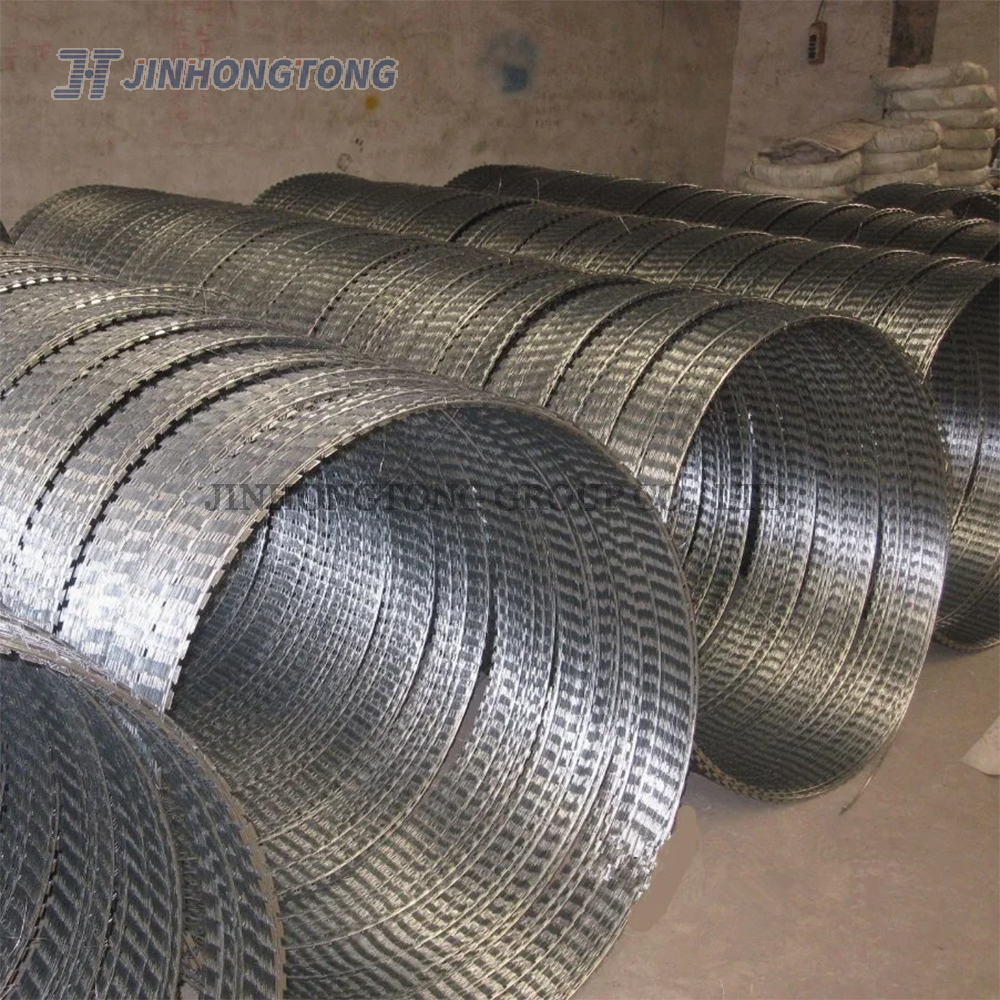

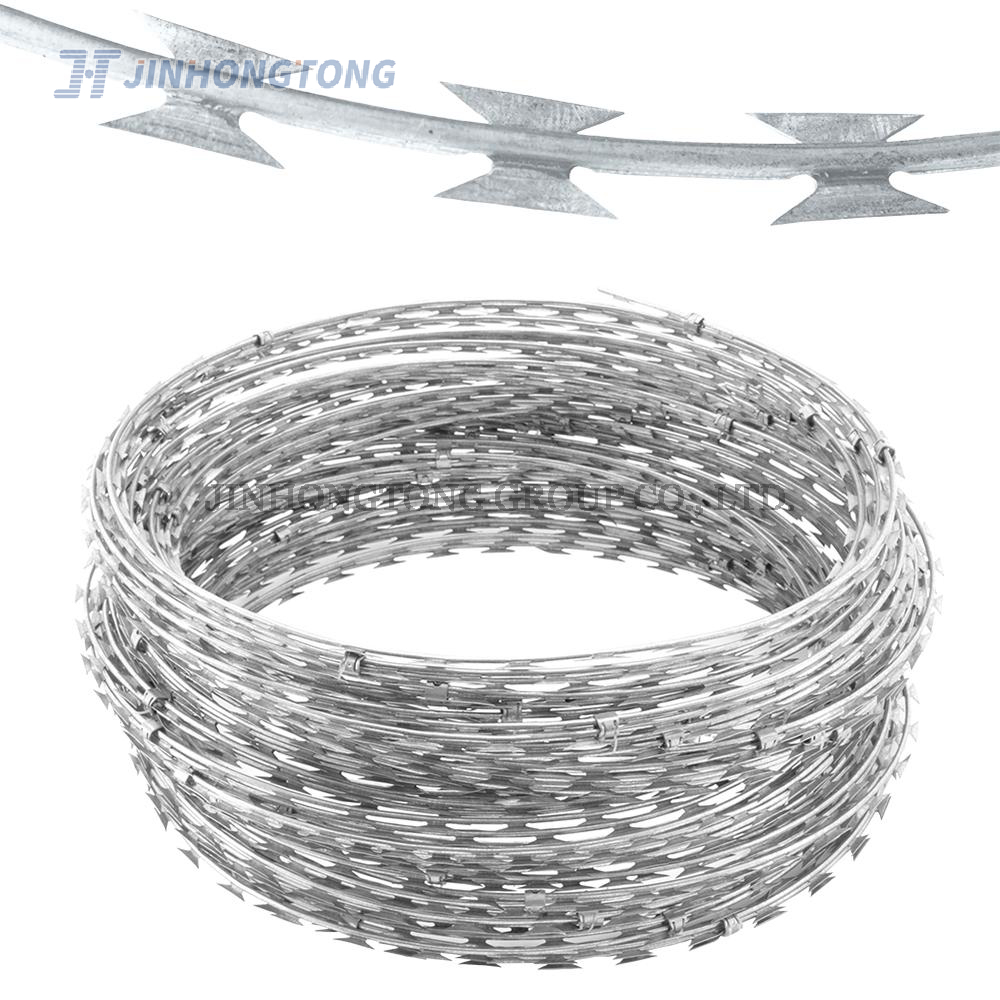

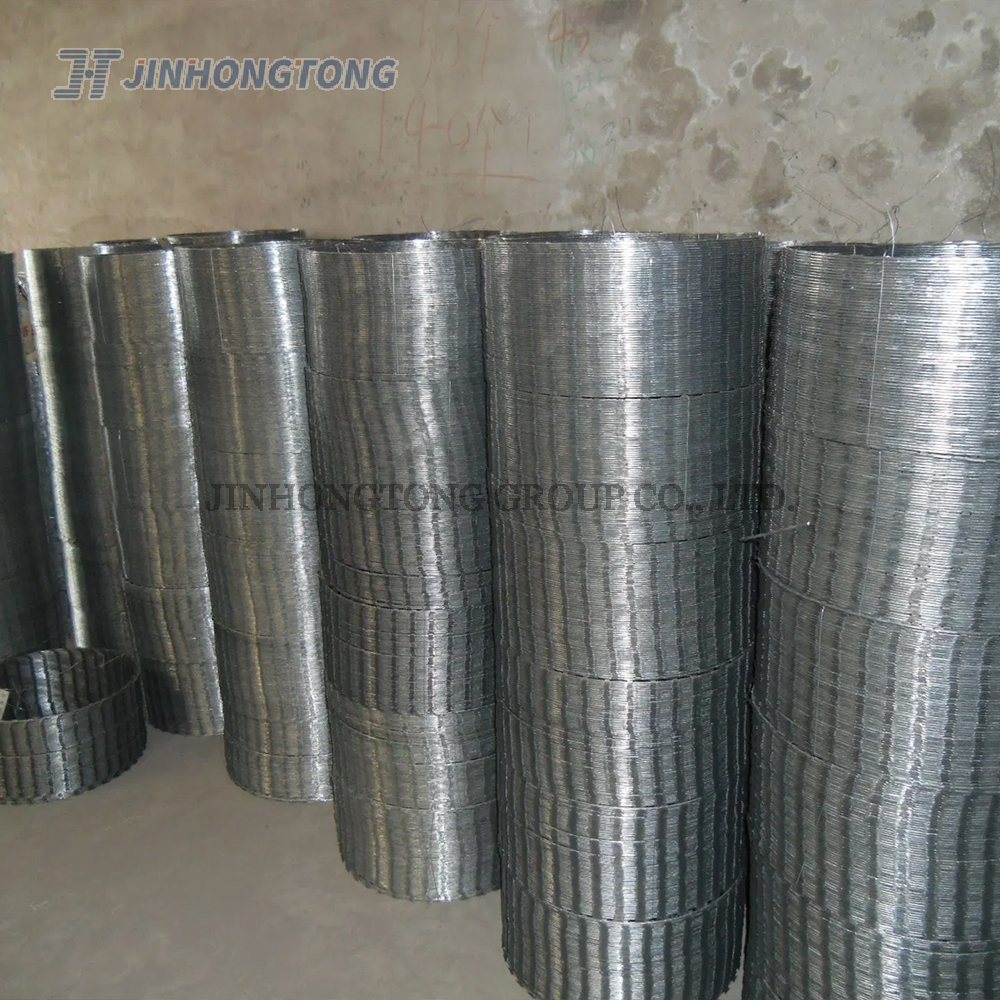

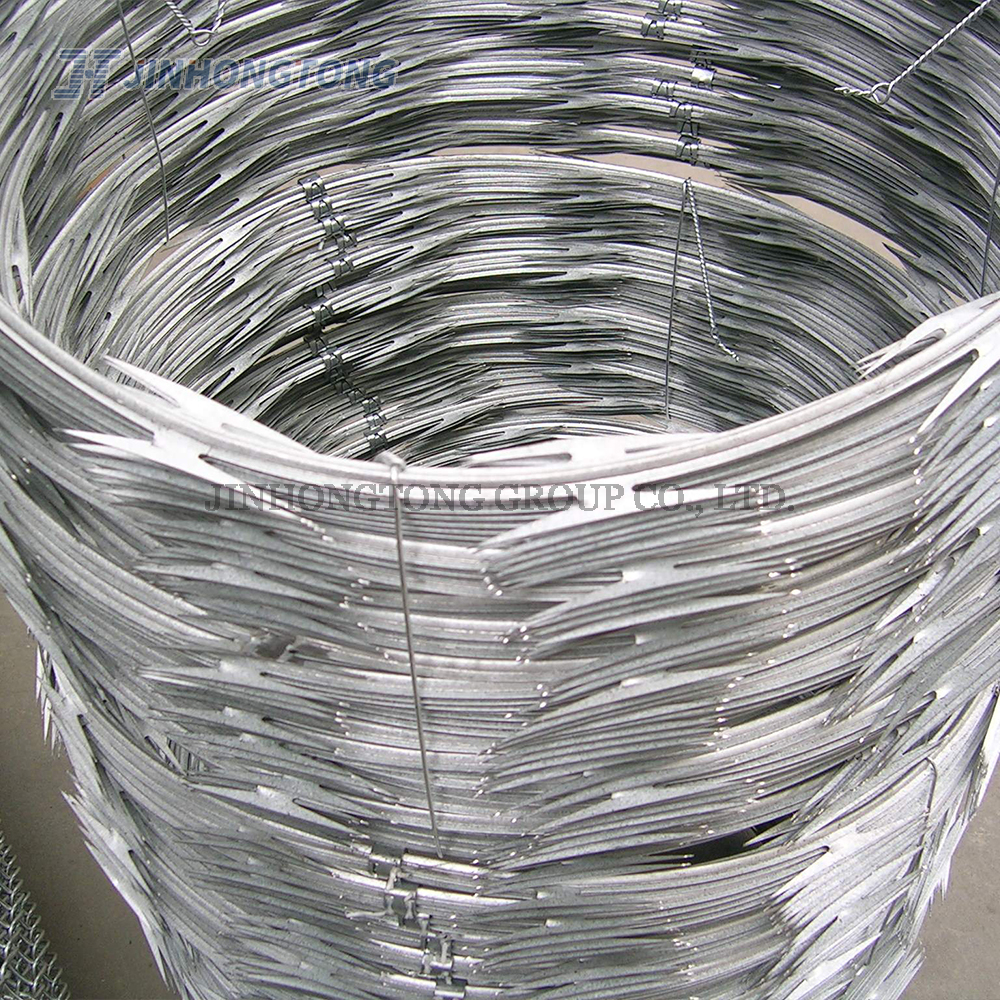

MILITARY CONCERTINA RAZOR WIRE
  • MILITARY CONCERTINA RAZOR WIRE
  • MILITARY CONCERTINA RAZOR WIRE
  • MILITARY CONCERTINA RAZOR WIRE
  • MILITARY CONCERTINA RAZOR WIRE
  • MILITARY CONCERTINA RAZOR WIRE
  • MILITARY CONCERTINA RAZOR WIRE

Product Description

Military Razor wire is widely used in prisons, border posts, detention centers,government building or other security facilities.Also used for division of railway, highway, agricultural fencing, etc.


It is relatively inexpensive, but viciously effective. Concertina razor Wire around the perimeter is enough to deter any wouldbe vandal, robber or saboteur. Razor Wire is made of a corrosion resistant galvanized steel cutting ribbon wrapped around a core of galvanized spring steel wire. It's impossible to cut without highly specialized tools, and even then it's a slow, dangerous job. Concertina Razor Wire is a long lasting and very effective barrier, known and trusted by security professionals.


Welded razor wire mesh and concertina razor wire coil can also be combined with each other, and such an effective combination can prevent the theft of all illegal elements. In military, frontier or some well-organized places are heavily used by military soldiers.


Straight blade razor wire no buckle, the outer packaging is the same as the general barbed wire, it can be pulled into a straight line after opening, and it is also widely used in military .


Spiral razor wire is a wide range of razor barbed wire. It is simple to install and has good anti-theft effect. More than 80% of the market is this kind of barbed wire. It is widely used in border defense lines, general factories and residential walls, the diameter can be selected according to customer needs. generally, the diameters of 800 mm and 900 mm are used, and the civil will choose the diameter of 500 mm.


Razor wire has various types according to the blade specification, such as BTO-12, BTO-18, CBT-65. The BTO refers to barbed tape obstacle. And the 12, 18 or 65 refers to the barb length, barb length is the distance from in the middle of the blade tape to the next to the blade tape. The barbed length is longer, the razor wire is much sharper and more safe.


Specification
Material: galvanized steel wire or stainless steel wire
Type: razor wire Coil
Razor thickness: 0.5mm-0.6mm +/-0.05mm
Razor Type: cross razor
Diameter: 450mm-960mm
Barbed distance: 7.5-15cm


BTO-22 CBT-65 Galvanized Concertina Razor Barbed Wire


TypeWire Gauge (SWG)Barb
Spacing (mm)
Barbed Length (mm)
Electric Galvanized
&
Hot-dip Galvanized
10# x 12#75-15015-30
12# x 12#
12# x 14#
14# x 14#
14# x 16#
16# x 16#
16# x 18#
PVC coatedbefore coatingafter coating75-15015-30
1.0mm -3.5mm1.4mm -4.0mm
SWG11#-20#SWG8#-17#
PVC coating thickness: 0.4mm -0.6mm ; different coating colors are available.


Hot Dipped Galvanized Concertina Razor Barbed Wire Mesh for Protection BWG 12 / BWG 18


Model Number: Barbed wire - 1
Material: Iron Wire
Surface Treatment: galvanized
Type: Barbed Wire Coil
Razor Type: Cross Razor
Wire gague: bwg12*14, bwg14*14, bwg16*16
Strand: Single, Double, General
Wire diameter: 1.6mm-2.8mm(BWG12-BWG16)
Packing: 50kg/coil
Length: 50m 100m
Surface: Hot Galvanized+PVC+Electro Galvanized


Chain Link Fence Systems Concertina Hot Dipped Galvanized Razor Barbed Wire


Concertina Hot Dipped Galvanized Razor Barbed Wire


Barbed Tape Wire Specification Of Razor Wire
Outside DiameterNo. of LoopsStandard Length per CoilTypeNotes
450mm337-8MCBT-60.65Single coil
500mm5612-13MCBT-60.65Single coil
700mm5613-14MCBT-60.65Single coil
960mm5614-15MCBT-60.65Single coil
450mm568-9M (3 CLIPS)BTO-10.12.18.22.28.30Cross type
500mm569-10M (3 CLIPS)BTO-10.12.18.22.28.30Cross type
600mm5610-11M (3 CLIPS)BTO-10.12.18.22.28.30Cross type
600mm568-10M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
700mm5610-12M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
800mm5611-13M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
900mm5612-14M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
960mm5613-15M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
980mm5614-16M (5 CLIPS)BTO-10.12.18.22.28.30Cross ty
