Product Description

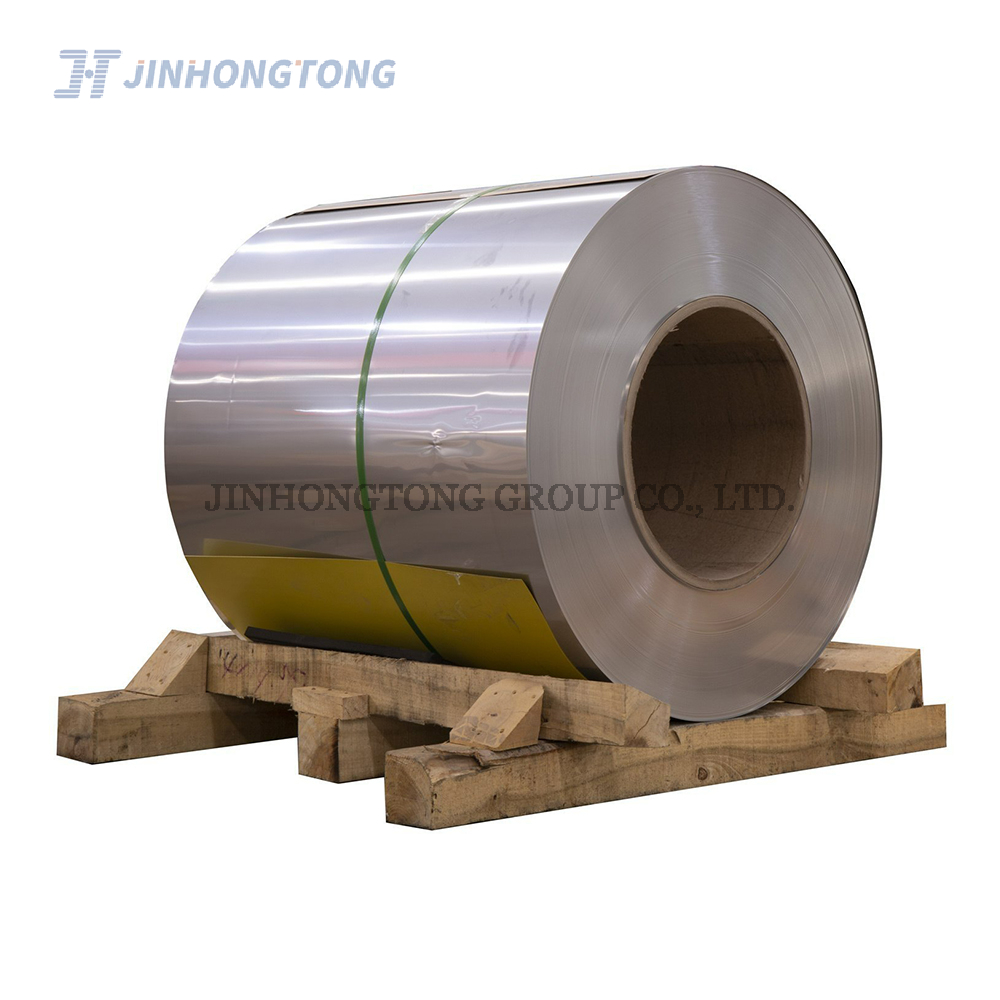

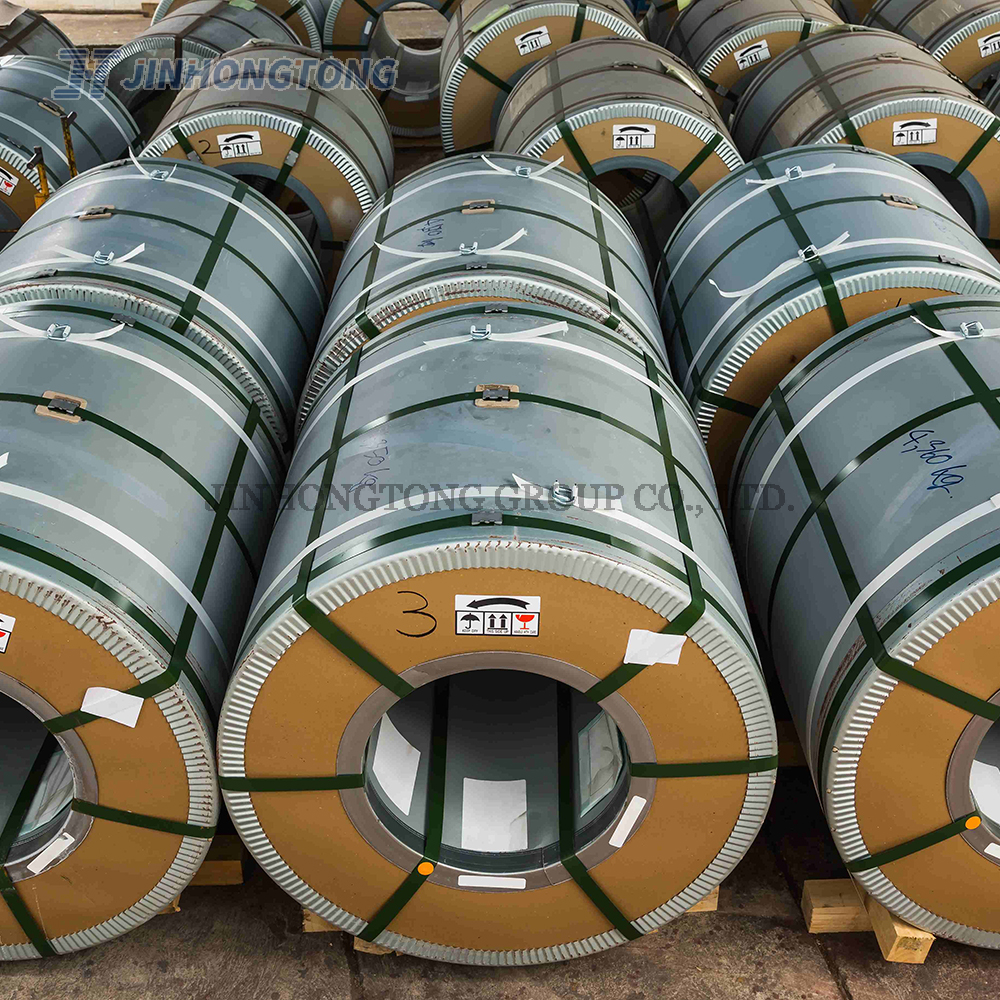

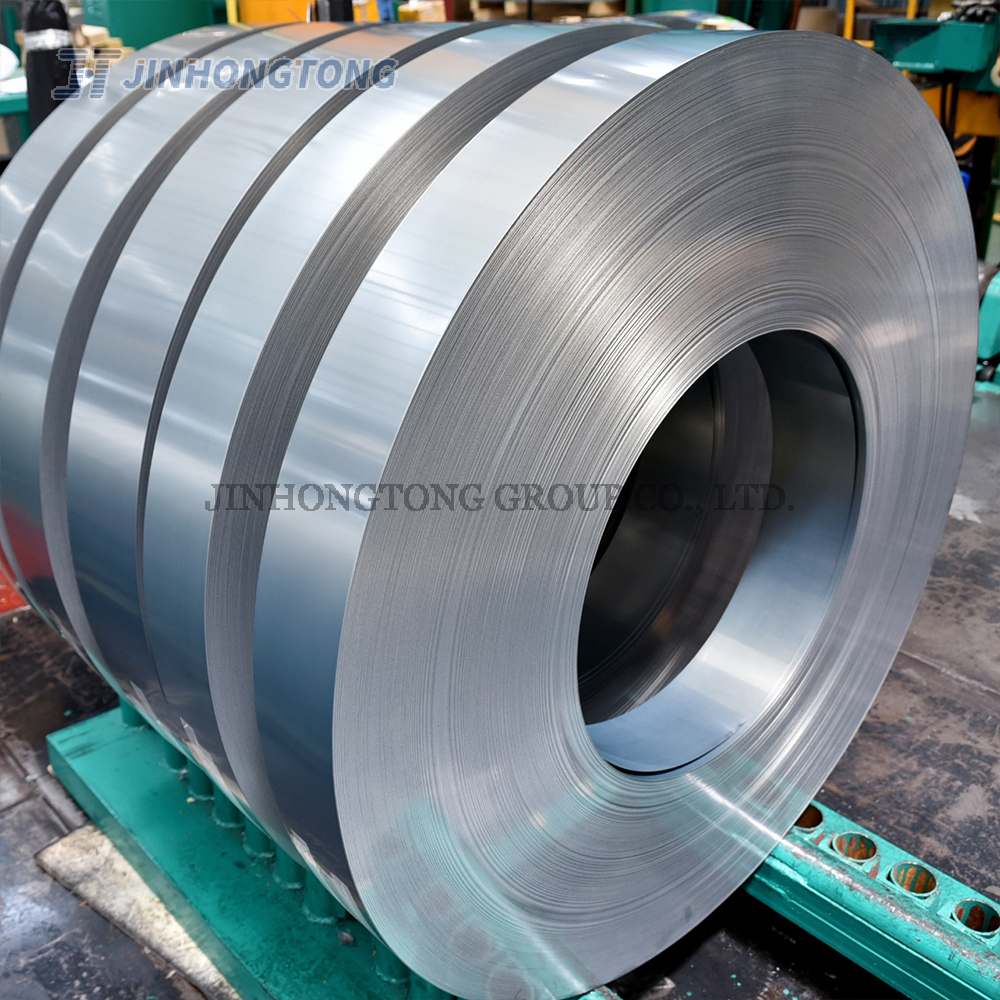

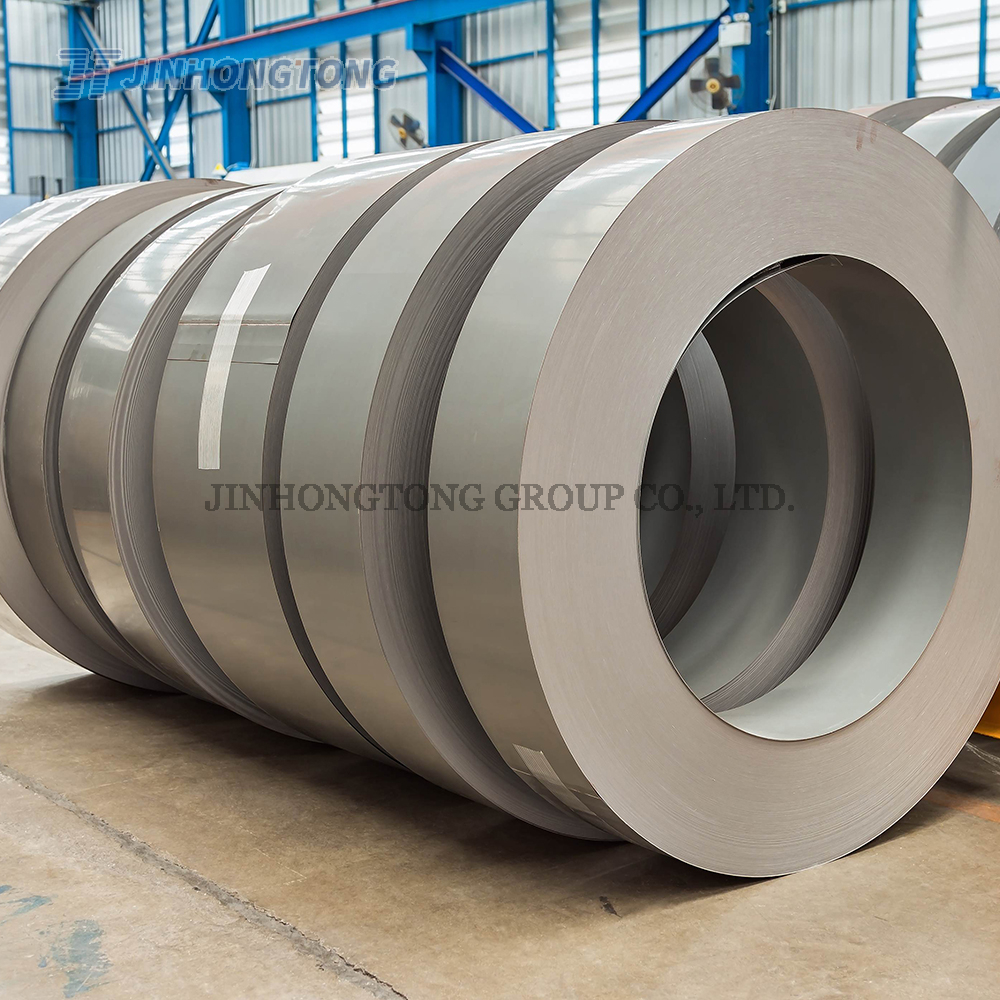

Silicon Steel

Silicon steel, also known as electrical steel, silicon electrical steel, lamination steel, relay steel, or transformer steel is specialty steel with silicon added to it, which improves its electrical resistivity and magnetic properties, and reduces hysteresis loss. This steel is ideal for various electrical applications where electromagnetic fields are important, such as transformers, magnetic coils, and electrical motors.

Electrical steel usually referred to as cold-rolled electrical steel, can be divided into two major categories including grain-oriented electrical steel and non-oriented electrical steel. Grain-oriented electrical steel, with its easy magnetization direction parallel to the rolling direction, has excellent magnetic properties in this direction including low core loss, high permeability, and low magnetostriction, and is widely used in the transformer industry. Further, it can obtain lower core loss by domain refinement treatment. Meanwhile, non-oriented electrical steel, featured by a random distribution of grain orientation and magnetic isotropy, is widely applicable to the motor industry.

Product Specification and Size :

Standard Size

Silicon Steels and Their Applications

Silicon steel is the most important magnetic material in industrial applications. The general applications include volt relays or pulse transformers from the generator, automotive, and transformer sectors.

Silicon steel is undoubtedly the most important soft magnetic material in use today. Applications vary in quantities from the few ounces used in small relays or pulse transformers to tons used in generators, motors, and transformers. Continued growth in electrical power generation has required development of better steels to decrease wasteful dissipation of energy (as heat) in electrical apparatus and to minimize the physical dimensions of the increasingly powerful equipment now demanded.

Substantial quantities of oriented steel are used, mainly in power and distribution transformers. However, it has not supplanted nonoriented silicon steel, which is used extensively where a low-cost, low-loss material is needed, particularly in rotating equipment. Mention should also be made of the relay steels, used widely in relays, armatures, and solenoids. Relay steels contain 1.25 to 2.5% Si, and are used in direct current applications because of better permeability, lower coercive force, and freedom from aging.

Important physical properties of silicon steels include resistivity, saturation induction, magneto-crystalline anisotropy, magnetostriction, and Curie temperature.

Making and Using Oriented Steel

Oriented silicon steel is more restricted in composition than non-oriented varieties. The texture is developed by a series of careful working and annealing operations, and the material must remain essentially single-phase throughout processing, particularly during the final anneal because phase transformation destroys the texture. To avoid the y loop of the Fe-Si phase system, today`s commercial steel has about 3.25% Si. Higher silicon varieties, which might be favored on the basis of increased resistivity and lower magnetostriction, are precluded by difficulties in cold rolling.

Temperature, atmosphere composition, and dew point are closely controlled to decarburize the strip without oxidizing the surface. During this treatment, primary recrystallization occurs, forming small, uniform, equiaxed grains. The coating of magnesium silicate glass which forms will provide electrical insulation between successive laminations when assembled in a transformer core. At this stage, the steel is graded by cutting Epstein samples from the coil; the samples are stress relief annealed and flattened at 790°C, and tested for core loss.

Applications for oriented silicon steel include transformers (power, distribution, ballast, instrument, audio, and specialty), and generators for steam turbine and water wheels.

Fields of Application

-Material Selection

Grain-oriented electrical steel

Insulating Coating

Making and Using Oriented Steel

Oriented silicon steel is more restricted in composition than non-oriented varieties. The texture is developed by a series of careful working and annealing operations, and the material must remain essentially single-phase throughout processing, particularly during the final anneal because phase transformation destroys the texture. To avoid the y loop of the Fe-Si phase system, today`s commercial steel has about 3.25% Si. Higher silicon varieties, which might be favored on the basis of increased resistivity and lower magnetostriction, are precluded by difficulties in cold rolling.

Temperature, atmosphere composition, and dew point are closely controlled to decarburize the strip without oxidizing the surface. During this treatment, primary recrystallization occurs, forming small, uniform, equiaxed grains. The coating of magnesium silicate glass which forms will provide electrical insulation between successive laminations when assembled in a transformer core. At this stage, the steel is graded by cutting Epstein samples from the coil; the samples are stress relief annealed and flattened at 790°C, and tested for core loss.
